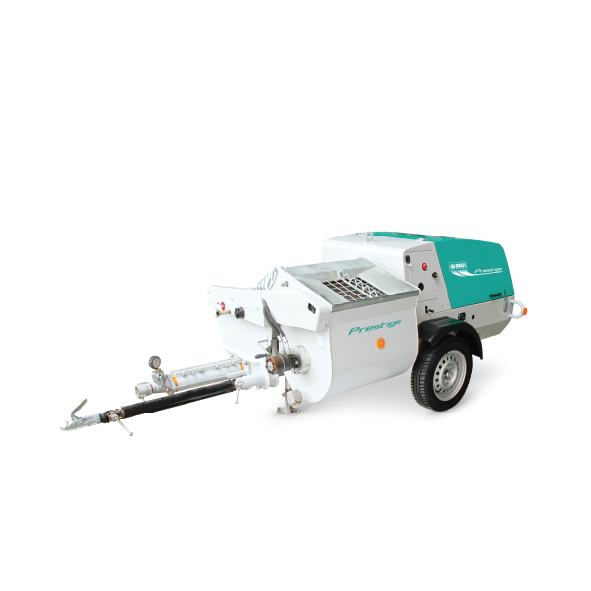

The IMER Silent 300 Prestige Pumping and Spraying Machine is a versatile, diesel-powered solution designed for mixing, pumping, and spraying cement-based materials and other suitable construction mixtures.
Combining a hydraulic pumping system, high-shear mixer, and compressor in one machine, it supports applications ranging from grout pumping and block filling to stucco application and fireproofing work.
Its integrated design helps construction teams streamline material preparation and delivery across demanding job-site operations.
The IMER Silent 300 Prestige is a multi-function pumping and spraying machine developed for construction applications that require consistent material mixing and controlled delivery. Its integrated configuration combines three principal functions: material pumping, mixing, and compressed-air supply for compatible spraying operations.
Powered by a Yanmar diesel engine, the machine uses a hydraulic system to operate its pumping and mixing functions. The high-shear hydraulic mixer supports rapid preparation of cement-based mixtures, while the variable-speed hydraulic pump allows operating speed to be adjusted for the task and material requirements.
The machine can be used for a range of construction activities, including grout pumping, block filling, stucco application, fireproofing, and selected soil-stabilisation or drilling-related grouting operations. Its application depends on material composition, aggregate size, the selected rotor and stator configuration, and the required delivery conditions.
Key Benefits
Specifications & Features
| Parameter | Details |
| Brand | IMER |
| Model | Silent 300 Prestige |
| Product type | Pumping and spraying machine |
| Manufacturer part number | 1106133 |
| Engine | Yanmar diesel |
| Engine power | 24 HP |
| Compressor flow rate | 14 CFM |
| Standard pump configuration | 2L6 screw pump |
| Maximum aggregate size with IM25L configuration | Up to 3/8 inch (approximately 9.5 mm) |
| Variable flow rate — 2L6 | 3 cu ft/hr (approximately 0.085 m³/hr) |
| Variable flow rate — IM25L | 4 cu ft/hr (approximately 0.113 m³/hr) |
| Variable flow rate — 60.12 | 12 cu ft/hr (approximately 0.340 m³/hr) |
| Maximum pressure — 2L6 configuration | 580 psi (approximately 40 bar) |
| Hopper capacity | 7 cu ft (approximately 198 L) |
| Mixer capacity | 6.3 cu ft (approximately 178 L) |
| Listed dimensions | Approximately 1,410 × 3,340 × 1,346 mm (L × W × H) |
| Listed weight | Approximately 750 kg |
Technical note: Flow rate, aggregate capacity, and pressure depend on the selected rotor/stator configuration and material characteristics. Confirm the exact machine configuration and operating specifications before purchase. Dimensions and weight should also be verified against the supplied unit.
Main Components
Optional Equipment
Depending on the required application and confirmed configuration, available accessories may include:
Accessory availability and compatibility should be confirmed when requesting a quotation.
The IMER Silent 300 Prestige is designed for construction tasks that require the preparation, pumping, or spraying of compatible materials.
Suitable configurations can support grout delivery for relevant construction and specialist contracting applications. Material composition and pumping requirements should be assessed before selecting the pump configuration.
The machine can support block-filling operations by delivering suitable grout into masonry block cavities. This can help mechanise material delivery compared with manual handling methods.
When equipped with compatible spraying accessories, the machine can be used to apply suitable stucco mixtures to building surfaces.
The machine can support the pumping or spraying of compatible fireproofing materials. The selected material must be approved for the intended application and compatible with the equipment configuration.
Suitable configurations can be used for grout pumping during selected soil-stabilisation and drilling-related operations, subject to project requirements and material compatibility.
The integrated mixing and pumping arrangement can support contractors working with suitable cement-based mixtures across different construction projects.
Frequently Asked Questions
It is a diesel-powered machine designed to mix, pump, and spray suitable construction materials. Typical applications include grout pumping, block filling, stucco application, and selected fireproofing and soil-stabilisation operations.
The specified configuration uses a Yanmar diesel engine rated at 24 HP. Confirm the engine specification for the exact unit being supplied.
The stated variable flow rates depend on the rotor/stator configuration: approximately 3 cu ft/hr for the 2L6, 4 cu ft/hr for the IM25L, and 12 cu ft/hr for the 60.12 configuration. Actual output depends on material characteristics and operating conditions.
With the IM25L configuration, the stated maximum pumpable aggregate size is up to 3/8 inch, approximately 9.5 mm. Confirm material suitability and configuration before use.
Yes. Its integrated compressor and compatible spray accessories support spraying applications for suitable materials. The appropriate hose, spray gun, and other accessories should be selected for the intended work.
The supply configuration may include the diesel engine, pump, mixer, compressor, material hose, hose reducer, and other listed components. Optional accessories may be purchased separately. Confirm the final scope of supply with AHCL Auto and Equipment Division.
Contact AHCL Auto and Equipment Division to enquire about the IMER Silent 300 Prestige, confirm its technical configuration, and request a quotation for your project requirements.
