SV08-1C

Yanmar SV08-1C Ultra-Mini Excavator | 7.7 kW | Yanmar

The Yanmar SV08-1C Ultra-Mini Excavator combines compact dimensions with practical digging performance for work in confined spaces. Powered by a 7.7 kW (10.3 HP) vertical 2-cylinder water-cooled diesel engine, it features a sliding variable undercarriage that retracts to 680 mm and extends to 840 mm for improved stability during operation

Key Features & Benefits

Ultra-Compact Design for Confined Spaces

The SV08-1C is designed to work in confined spaces, with an ultra-small turning radius of 725 mm and rear overhang of just 305 mm. Its compact dimensions help the machine operate where access and working space are limited.

Sliding Variable Undercarriage

The undercarriage can retract to 680 mm for access through narrow passages and extend to 840 mm for increased stability during operation.

Simple Folding Extendable Blade

The hinged blade extensions remain permanently attached to the blade and can be folded without tools. The design allows the blade width to be adjusted conveniently while reducing the risk of losing separate blade extensions.

Powerful Diesel Engine

The SV08-1C is equipped with a vertical 2-cylinder water-cooled diesel engine, model 402J-05 IG84555R, producing a gross rated output of 7.7 kW (10.3 HP) at 2,400 rpm.

Strong Digging Performance

The machine provides a maximum bucket digging force of 10.5 kN (2,360 lbs.) and maximum arm digging force of 6.2 kN (1,390 lbs.).

Foldable ROPS Bar

The foldable ROPS bar is designed to provide operator protection in the event of a rollover and can be folded down when passing through height-restricted areas.

Low-Noise Operation

The SV08-1C incorporates an ultra-low-noise design intended to be friendly to people and the environment.

Easy Maintenance

The machine incorporates a wide-opening bonnet and protected components, including covered boom hoses and cylinders and a bucket cylinder hose routed inside the arm.

I am Interested!

Yanmar SV08-1C Ultra-Mini Excavator

The Yanmar SV08-1C is an ultra-mini excavator engineered for performance in compact working environments. Its small footprint, variable undercarriage and compact turning radius make it particularly suited to jobs where access and available working space are limited.

Powered by a 7.7 kW (10.3 HP) vertical 2-cylinder water-cooled diesel engine, the SV08-1C delivers a maximum bucket digging force of 10.5 kN and arm digging force of 6.2 kN.

One of its key features is the sliding variable undercarriage. The track width can retract to 680 mm, allowing the excavator to pass through narrow passages, and extend to 840 mm when additional stability is required during operation.

The machine's compact design also provides an ultra-small 725 mm front minimum swing radius, while the rear overhang is only 305 mm. This helps the excavator operate effectively in restricted working areas.

For operator protection and access through restricted-height areas, the machine is equipped with a foldable ROPS bar. The ROPS can be folded down to allow the machine to pass through areas with limited overhead clearance.

The SV08-1C also features a simple folding extendable blade, protected hydraulic components and a wide-open bonnet designed to support easier maintenance access.

Applications

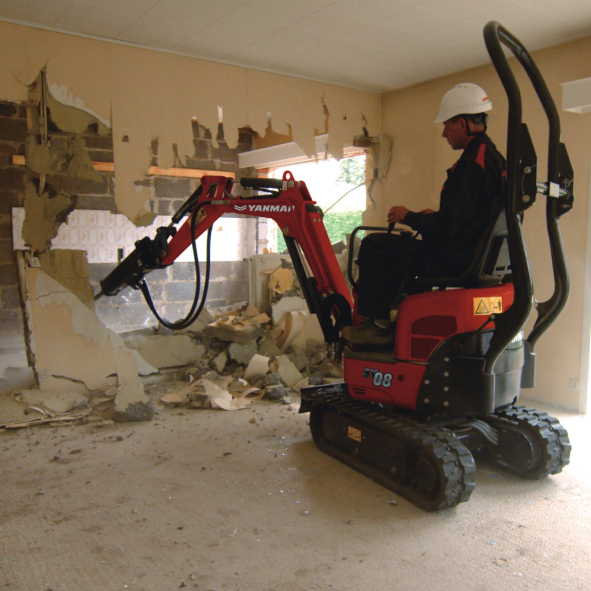

Confined-Space Excavation

The compact dimensions and retractable undercarriage make the SV08-1C suitable for work in areas where access is restricted.

Narrow Access Areas

With the undercarriage retracted to 680 mm, the machine can fit through narrow passages before extending to 840 mm for working stability.

Restricted-Height Areas

The foldable ROPS bar allows the machine to pass through height-restricted passages when folded down.

Compact Job Sites

The small turning radius and compact rear overhang help the machine operate in limited working areas.

Why Choose the Yanmar SV08-1C?

• Ultra-mini excavator design
• Designed for confined spaces
• 7.7 kW (10.3 HP) gross engine output
• Sliding variable undercarriage
• 680–840 mm track width
• 725 mm ultra-small turning radius
• 305 mm rear overhang
• 10.5 kN maximum bucket digging force
• Foldable ROPS bar
• Rubber tracks
• Low-noise design
• Protected hydraulic components
• Easy maintenance access

Frequently Asked Questions

What is the Yanmar SV08-1C?

The Yanmar SV08-1C is an ultra-mini excavator designed to work in confined spaces. It features a sliding variable undercarriage, compact turning radius and a 7.7 kW (10.3 HP) diesel engine.

What is the engine power of the Yanmar SV08-1C?

The SV08-1C has a gross rated engine output of 7.7 kW (10.3 HP) at 2,400 rpm.

How wide is the Yanmar SV08-1C?

The sliding variable undercarriage retracts to 680 mm and extends to 840 mm.

What is the operating weight of the SV08-1C?

The operating weight with rubber tracks is 1,035 kg (2,282 lbs.).

What is the maximum digging depth?

The catalogue specifies a maximum digging depth of 1,460 mm (57.5 in.), with an alternative dimension of 1,590 mm (62.6 in.) shown in the specifications.

What is the maximum digging force?

The maximum bucket digging force is 10.5 kN (2,360 lbs.), while the maximum arm digging force is 6.2 kN (1,390 lbs.).

Does the SV08-1C have a variable track width?

Yes. The sliding variable undercarriage allows the track width to be adjusted between 680 mm and 840 mm.

Does the Yanmar SV08-1C have a ROPS bar?

Yes. The SV08-1C is equipped with a foldable ROPS bar. ROPS stands for Roll-Over Protective Structure.
