Yanmar SV100-2B Ultra Tight Tail Swing Excavator – 54.1 kW (72.5 HP)
SV100-2B
Yanmar SV100-2B Excavator | 72.5 HP Ultra Tight Tail Swing

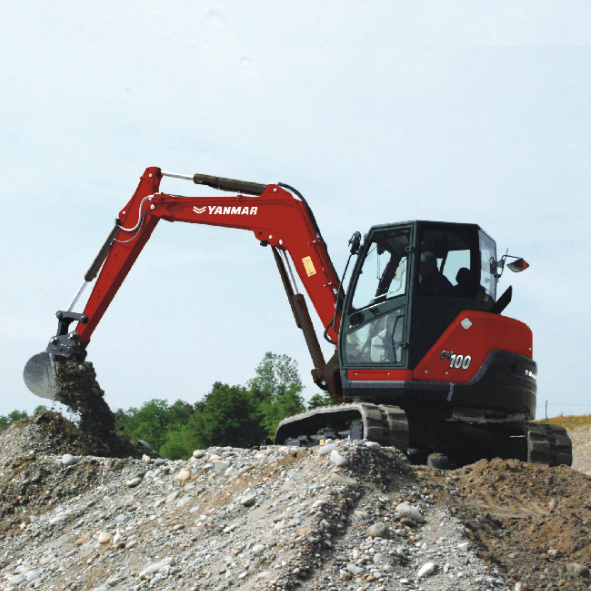

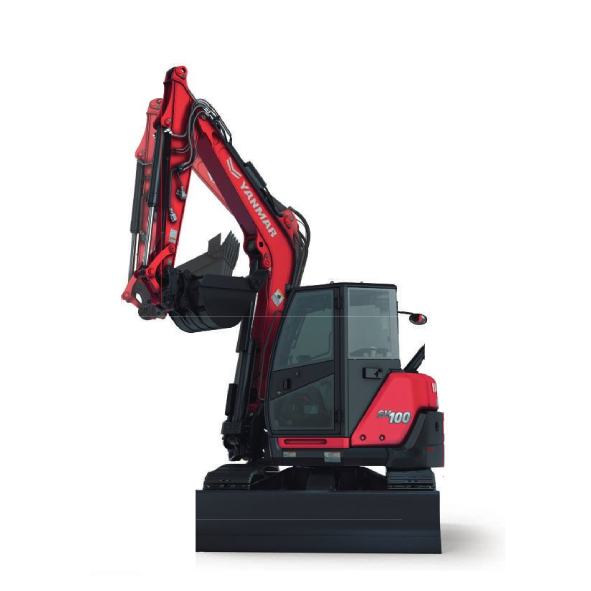

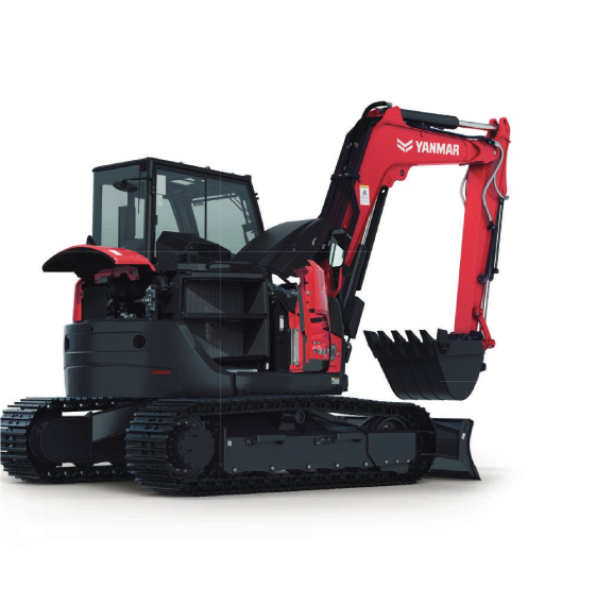

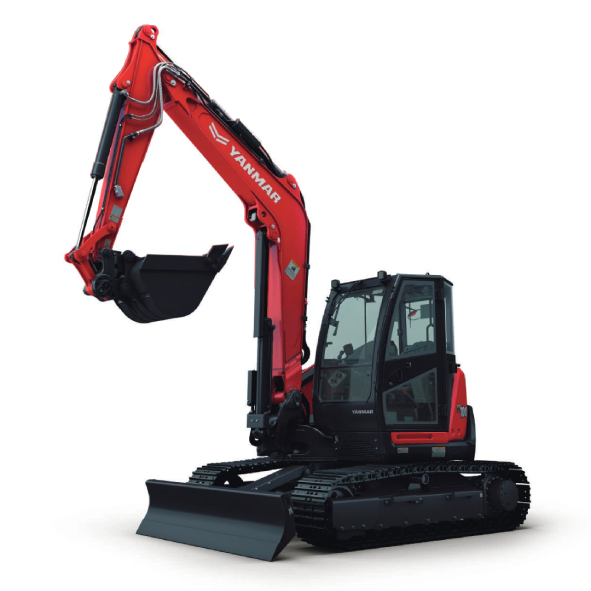

The Yanmar SV100-2B Ultra Tight Tail Swing Excavator combines the performance of a larger excavator with the maneuverability required for confined working environments. Powered by a 54.1 kW (72.5 HP) Yanmar diesel engine, it features an ultra tight tail swing, standard boom swing and standard blade for versatile operation on demanding job sites.
Designed for demanding operating conditions, the SV100-2B is suitable for Saudi Arabian environments, making it a practical solution for construction and industrial applications across the Kingdom.
The Yanmar SV100-2B is available in Saudi Arabia through Abdullah Hashim Company – Auto & Equipment Division, the exclusive dealer of Yanmar products in Saudi Arabia.
Key Features & Benefits
Ultra Tight Tail Swing
The SV100-2B is designed for operation in tight working spaces. Its counterweight is positioned close to the upper frame, resulting in a minimal 170 mm rear overhang and near-zero tail swing performance. This compact configuration helps the machine work closer to obstacles and in space-constrained job sites.
Standard Boom Swing
The standard boom swing provides flexibility for digging parallel to walls and obstacles. The boom can swing 60° to the left and 60° to the right, helping the operator work effectively in restricted areas.
Standard Blade
The standard blade supports efficient dozing operations and provides additional stability during digging and lifting.
Powerful Yanmar Diesel Engine
The SV100-2B is powered by a 4TNV98T-ZSBV2 vertical 4-cylinder water-cooled direct-injection diesel engine, producing a gross rated output of 54.1 kW (72.5 HP) at 2,100 rpm.
Eco Mode
The Eco Mode reduces engine speed to 90% of maximum speed to help reduce fuel consumption during operation. The catalogue states that Eco Mode can reduce fuel consumption by 15%.
Auto Deceleration
When the machine stops for more than four seconds, Auto Deceleration automatically reduces engine speed to idle. Engine speed returns to the original level when the operation lever is moved.
Isochronous Control
The ECU controller helps maintain a constant engine speed under high loads, supporting smoother operation and reducing operator workload.
Enhanced Safety Features
The SV100-2B incorporates a ROPS and OPG TOP Guard Level I cabin, designed to meet ISO standards. Other safety-related features include a boom cylinder guard, LED working lights, emergency engine stop switch and standard back mirror.
Comfortable Operator Environment
The operator area includes an adjustable suspension seat, ergonomically arranged controls, a large LCD monitor with LED backlight, a dial accelerator and a 12V external power outlet. Hydraulic PTO lines can also be controlled from the operator's position.
Easy Maintenance Access
The machine is designed to make routine inspection and maintenance more accessible. Wide-opening engine and bonnet areas provide access to the engine, air cleaner, radiator, battery, hydraulic oil tank and fuel tank.
Hydraulic PTO Lines
Optional hydraulic PTO 1 and 2 lines with adjustable proportional control are available for operating various attachments.
Hydraulic Quick Coupler
The optional Yanmar hydraulic quick coupler allows operators to change buckets and other attachments more quickly without tools, helping reduce attachment-change time. Availability and attachment compatibility may vary.
SMARTASSIST Remote
SMARTASSIST Remote is a telematics system that uses a GPS transmission terminal to monitor construction equipment remotely. It can provide information on maintenance intervals and machine troubles through the Internet, supporting timely service and maintenance management.
Yanmar SV100-2B Ultra Tight Tail Swing Excavator
The Yanmar SV100-2B is an ultra tight tail swing excavator designed to deliver the performance of a larger excavator while maintaining the maneuverability needed for restricted working environments. Powered by a 54.1 kW (72.5 HP) Yanmar 4TNV98T-ZSBV2 diesel engine, the machine combines strong digging performance with a compact tail swing configuration.
The excavator's ultra tight tail swing design positions the counterweight close to the upper frame, resulting in a minimal 170 mm rear overhang. This allows the machine to operate closer to obstacles and in areas where conventional excavators may have limited maneuvering space.
The standard boom swing provides 60° movement to the left and 60° to the right, giving operators greater flexibility when digging parallel to walls or working around obstacles.
With a gross rated engine output of 54.1 kW (72.5 HP) and maximum bucket digging force of up to 68.5 kN, the SV100-2B provides the power and digging capability required for a wide range of construction applications.
The machine also incorporates features designed to support efficient operation, including Eco Mode, Auto Deceleration and Isochronous Control. Eco Mode reduces engine speed to 90% of maximum speed, while Auto Deceleration automatically reduces engine speed when the machine remains inactive for more than four seconds.
The SV100-2B is suitable for Saudi Arabian environments, offering a practical solution for construction and industrial operations across the Kingdom. Its compact tail swing configuration is particularly useful for projects where working space is restricted.
For operator comfort and productivity, the machine features a suspension and reclining seat, ergonomic controls, a large LCD monitor, dial accelerator and 12V external power outlet.
Yanmar in Saudi Arabia
The Yanmar SV100-2B is supplied in Saudi Arabia by Abdullah Hashim Company – Auto & Equipment Division, the exclusive dealer of Yanmar products in Saudi Arabia.
Abdullah Hashim Company has been a leading provider of advanced industrial equipment and solutions since 1940, representing premium international brands and providing equipment and solutions to customers across Saudi Arabia.
Through its Auto & Equipment Division, Abdullah Hashim Company provides Yanmar equipment to customers across the Kingdom, supported by its experience in the Saudi industrial and equipment market.
Dimensions & Operating Performance
The SV100-2B offers:
- 2,320 mm machine width
- 1,330 mm tail swing radius
- 170 mm rear overhang
- 2,790 mm front minimum swing radius with quick coupler
- 2,390 mm front minimum swing radius when swinging with quick coupler
- 7,400 mm maximum ground digging radius
- 7,730 mm maximum cutting height
- 5,120 mm maximum dumping height
- 4,530 mm maximum digging depth, with configuration-dependent values available
Applications
Construction
The SV100-2B is designed for demanding construction work requiring substantial digging performance combined with maneuverability.
Confined-Space Excavation
Its ultra tight tail swing and minimal rear overhang make it suited to job sites where working space around the machine is limited.
Digging Along Walls and Obstacles
The standard boom swing allows the operator to dig parallel to walls and work around obstacles.
Grading and Dozing
The standard blade supports grading and dozing operations while also providing additional stability during digging and lifting.
Attachment-Based Applications
Optional hydraulic PTO lines and a hydraulic quick coupler support the use and faster changeover of compatible attachments.
Why Choose the Yanmar SV100-2B?
- 54.1 kW (72.5 HP) Yanmar diesel engine
- Ultra tight tail swing design
- Minimal 170 mm rear overhang
- Standard boom swing
- 60° left and 60° right boom swing
- Standard blade
- Up to 68.5 kN bucket digging force
- Up to 45.8 kN arm digging force
- Eco Mode
- Auto Deceleration
- Isochronous engine control
- ROPS and OPG TOP Guard Level I cabin
- LED working lights
- Large LCD monitor
- Suspension and reclining operator seat
- Hydraulic PTO control
- Easy maintenance access
- Optional hydraulic quick coupler
- SMARTASSIST Remote telematics system
Frequently Asked Questions
What is the Yanmar SV100-2B?
The Yanmar SV100-2B is an ultra tight tail swing excavator designed to combine the performance of a larger excavator with the maneuverability benefits of a mini excavator.
What is the engine power of the Yanmar SV100-2B?
The SV100-2B uses a Yanmar 4TNV98T-ZSBV2 diesel engine with a gross rated output of 54.1 kW (72.5 HP) at 2,100 rpm.
What is the operating weight of the SV100-2B?
Depending on the track and quick-coupler configuration, operating weight ranges from 9,625 kg to 9,825 kg.
What is the digging depth of the SV100-2B?
The maximum digging depth varies according to configuration. The catalogue specifies up to 4,530 mm (178 in.), with 4,810 mm (189 in.) shown for the blade-down configuration.
What is the digging force of the SV100-2B?
Maximum bucket digging force is listed at up to 68.5 kN (15,399 lbs.), while maximum arm digging force is up to 45.8 kN (10,296 lbs.), depending on the specified configuration.
What does ultra tight tail swing mean?
The SV100-2B uses a compact upper-frame design that positions the counterweight close to the machine, resulting in a minimal 170 mm rear overhang and near-zero tail swing performance for tight working spaces.
Does the SV100-2B have boom swing?
Yes. The standard boom swing provides 60° of movement to the left and 60° to the right, helping the machine work parallel to walls and around obstacles.
Does the SV100-2B have an Eco Mode?
Yes. Eco Mode reduces engine speed to 90% of maximum speed, and the catalogue states that it can reduce fuel consumption by 15%.
Does the SV100-2B support attachments?
Yes. Optional hydraulic PTO lines and a hydraulic quick coupler are available to support compatible attachments. Attachment availability and compatibility may vary.
Yanmar Equipment in Saudi Arabia
Abdullah Hashim Company – Auto & Equipment Division is the exclusive dealer of Yanmar products in Saudi Arabia.
Since 1940, Abdullah Hashim Company has been a leading provider of advanced industrial equipment and solutions in the Kingdom, representing premium international brands and serving customers across Saudi Arabia through its own branches in Jeddah, Riyadh, Dammam, Tabuk, Buraidah, Jubail, Madinah, Hail, Al Hassa, Jizan, and Al Kharj.
As the exclusive Yanmar dealer in Saudi Arabia, Abdullah Hashim Company – Auto & Equipment Division provides access to Yanmar's range of construction and industrial equipment for customers across the Kingdom.
Why Buy Yanmar Equipment from Abdullah Hashim Company?
- Exclusive Yanmar dealer in Saudi Arabia
- Established presence in Saudi Arabia since 1940
- Premium international equipment brands
- Advanced industrial equipment and solutions
- Nationwide presence across Saudi Arabia
- Professional equipment support
