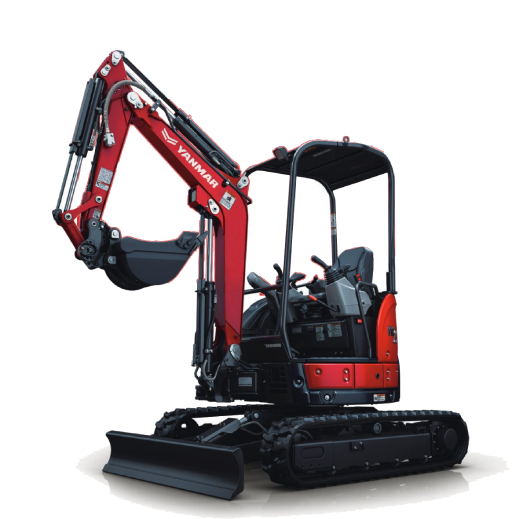

Yanmar ViO20-6 / ViO23-6 True Zero Tail Swing Mini Excavator
ViO20-6 / ViO23-6
Yanmar ViO20-6 / ViO23-6 Mini Excavator Saudi Arabia | AHCL
The Yanmar ViO20-6 and ViO23-6 are True Zero Tail Swing mini excavators designed to deliver compact maneuverability, reliable power and practical digging performance in confined working environments. Both models are powered by the YANMAR 3TNV76-PBV1 vertical 3-cylinder water-cooled diesel engine, producing 15.0 kW (20.1 HP) at 2,400 rpm.
The ViO20-6 features a fixed undercarriage, while the ViO23-6 comes with a sliding variable undercarriage that can retract to 1,380 mm and extend to 1,550 mm for improved access and stability.
Suitable for Saudi Arabian job site conditions, these compact excavators are well suited to construction, excavation, utility and infrastructure projects across the Kingdom.
The Yanmar ViO20-6 and ViO23-6 are available in Saudi Arabia through Abdullah Hashim Company (AHCL) – Auto & Equipment Division, the exclusive Yanmar dealer in Saudi Arabia.
Key Features & Benefits
True Zero Tail Swing
The ViO20-6 and ViO23-6 are designed with a True Zero Tail Swing configuration, allowing the upper frame to remain within the track width during rotation. This makes the machines suitable for working in confined areas and close to walls, barriers and other obstacles.
15.0 kW YANMAR Diesel Engine
Both models are powered by the YANMAR 3TNV76-PBV1 vertical 3-cylinder water-cooled diesel engine, delivering 15.0 kW (20.1 HP) at 2,400 rpm.
Two Undercarriage Options
The two models provide different undercarriage configurations:
- ViO20-6: Fixed undercarriage
- ViO23-6: Sliding variable undercarriage
The ViO23-6 can retract to 1,380 mm for access through narrower areas and extend to 1,550 mm for increased operating stability.
Eco Mode
Eco Mode reduces engine speed to 88% of maximum speed and is designed to help reduce fuel consumption, with the catalogue information stating savings of up to 20%.
Auto Deceleration
Auto Deceleration automatically reduces engine speed to idle after four seconds of inactivity, helping reduce unnecessary fuel consumption during periods when the machine is not actively operating.
SMARTASSIST Remote
The optional SMARTASSIST Remote telematics system provides GPS-based remote monitoring and fleet management capabilities, helping operators and fleet managers monitor machine information and maintenance requirements.
Hydraulic Quick Coupler
An optional hydraulic quick coupler allows faster, tool-free changes between compatible buckets and attachments, helping improve operational efficiency.
ROPS & FOPS Canopy
The four-pole canopy incorporates ROPS and FOPS protection and is designed to meet applicable ISO standards.
Yanmar ViO20-6 / ViO23-6 True Zero Tail Swing Mini Excavators
The Yanmar ViO20-6 and ViO23-6 combine compact dimensions with the performance and flexibility required for professional construction and excavation applications.
Both machines feature Yanmar's True Zero Tail Swing design. The upper frame does not extend beyond the track width, allowing operators to work in restricted spaces and closer to surrounding obstacles. This configuration makes the ViO20-6 and ViO23-6 practical choices for urban construction, utility trenching, renovation, landscaping and other applications where available working space is limited.
Both models are powered by the YANMAR 3TNV76-PBV1 vertical 3-cylinder water-cooled diesel engine, producing 15.0 kW (20.1 HP) at 2,400 rpm.
The machines are designed for demanding job-site applications and are suitable for Saudi Arabian environments, making them suitable for construction and infrastructure projects across the Kingdom.
ViO20-6 vs ViO23-6
Yanmar ViO20-6 – Fixed Undercarriage
The ViO20-6 features a fixed undercarriage designed to provide consistent machine stability and durability. With an operating weight of 2,125 kg in the specified canopy, rubber-track and without-quick-coupler configuration, it provides a compact solution for a variety of excavation and construction applications.
Key configuration:
- Fixed undercarriage
- 1,380 mm machine width
- 2,125 kg operating weight
- Rubber tracks
- 15.0 kW / 20.1 HP engine

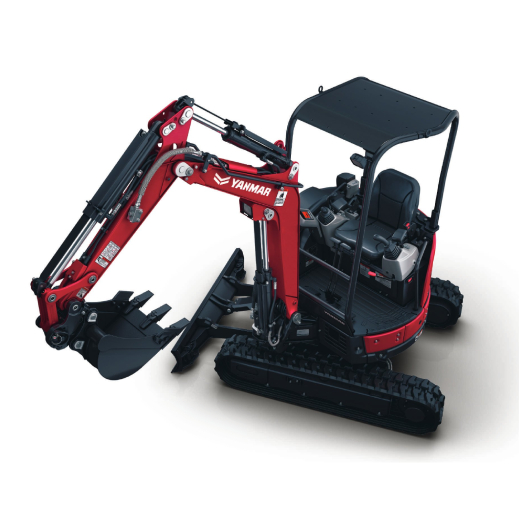

Yanmar ViO23-6 – Sliding Variable Undercarriage
The ViO23-6 features a sliding variable undercarriage that provides greater flexibility when working in different site conditions.
The undercarriage retracts to 1,380 mm to help the machine access narrower areas and extends to 1,550 mm for increased stability during operation.
The ViO23-6 has an operating weight of 2,295 kg in the specified canopy, rubber-track and without-quick-coupler configuration.
Key configuration:
- Sliding variable undercarriage
- 1,380–1,550 mm machine width
- 2,295 kg operating weight
- Rubber tracks
- 15.0 kW / 20.1 HP engine

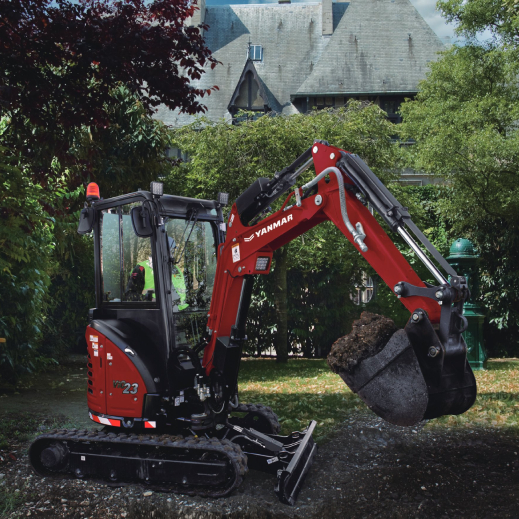

Designed for Saudi Arabian Job Sites
The Yanmar ViO20-6 and ViO23-6 are suitable for Saudi Arabian environments and provide a compact equipment solution for projects across the Kingdom.
Their True Zero Tail Swing configuration is particularly useful for urban and confined construction sites, where contractors need to operate near buildings, walls, infrastructure and other obstacles.
The machines can be used for applications including:
- Urban utility trenching
- Construction and excavation
- Renovation projects
- Demolition applications
- Landscaping
- Site preparation
- Infrastructure projects
- Confined-space excavation
Their compact configuration makes them relevant to projects in major Saudi cities and industrial areas, including Jeddah, Riyadh, Dammam, Jubail and Al Hassa.
YANMAR Engine – Reliable Power & Efficiency
Both models use the YANMAR 3TNV76-PBV1 vertical 3-cylinder water-cooled diesel engine.
Engine Output
15.0 kW (20.1 HP) at 2,400 rpm
Auto Deceleration
The system automatically reduces engine speed to idle after four seconds of inactivity, helping reduce unnecessary fuel consumption and engine workload.
Eco Mode
Eco Mode reduces engine speed to 88% of maximum speed and is designed to provide fuel savings of up to 20%, according to the supplied product information.
Durability & Protection Features
Spring Steel Cylinder Guards
Yanmar spring steel cylinder guards help protect hydraulic cylinders against potential damage, supporting machine durability and helping reduce the risk of downtime.
Protected Boom Hoses
Hydraulic hoses are routed inside the boom structure, helping protect them from external damage and exposure during operation.
Low-Noise Carrier Rollers
The machines incorporate low-noise carrier rollers designed to support quieter travel operation, which can be beneficial for work in urban environments.
LED Working Lights
LED lighting provides illumination around the machine to support operation during early-morning, evening and low-light working conditions.
Operator Comfort & Controls
The ViO20-6 and ViO23-6 are designed to provide an ergonomic operator environment for extended working periods.
Features include:
- Large LCD monitor with LED backlight
- Dial accelerator
- Ergonomically positioned controls
- Reclining and sliding operator seat
- External 12V power outlet
- PTO switch
- Hydraulic flow adjustment
- Fingertip control of hydraulic attachments
Frequently Asked Questions
What is the Yanmar ViO20-6?
The Yanmar ViO20-6 is a True Zero Tail Swing mini excavator powered by a 15.0 kW (20.1 HP) Yanmar diesel engine. It features a fixed undercarriage and is designed for compact construction and excavation applications.
What is the Yanmar ViO23-6?
The Yanmar ViO23-6 is a True Zero Tail Swing mini excavator with a sliding variable undercarriage. Its width can vary between 1,380 mm and 1,550 mm, providing flexibility between narrow-site access and operating stability.
What is the difference between the ViO20-6 and ViO23-6?
The main difference is the undercarriage configuration. The ViO20-6 has a fixed undercarriage, while the ViO23-6 has a sliding variable undercarriage that can retract and extend according to site requirements.
What is the engine power of the Yanmar ViO20-6 and ViO23-6?
Both models use the YANMAR 3TNV76-PBV1 engine, producing 15.0 kW (20.1 HP) at 2,400 rpm.
Are the ViO20-6 and ViO23-6 suitable for Saudi Arabia?
Yes. The ViO20-6 and ViO23-6 are suitable for Saudi Arabian job site environments and can be used for construction, excavation, utility, infrastructure, landscaping and other applications across the Kingdom.
Who is the Yanmar dealer in Saudi Arabia?
Abdullah Hashim Company (AHCL) – Auto & Equipment Division is the exclusive dealer of Yanmar products in Saudi Arabia.
Where can I buy a Yanmar mini excavator in Saudi Arabia?
Yanmar mini excavators are available through AHCL Auto & Equipment Division, with branches in Jeddah, Riyadh, Dammam, Tabuk, Buraidah, Jubail, Madinah, Hail, Al Hassa, Jizan and Al Kharj.
Is after-sales support available for Yanmar equipment in Saudi Arabia?
AHCL provides after-sales support and access to genuine Yanmar parts and accessories through its Auto & Equipment Division network across Saudi Arabia.
What attachments are available for the ViO20-6 and ViO23-6?
Compatible options include hydraulic quick couplers, Yanmar hydraulic breakers and various genuine Yanmar ecoY parts and accessories. Specific attachment compatibility should be confirmed for the machine configuration.
