Yanmar ViO30-7 / ViO35-7 True Zero Tail Swing Mini Excavator
ViO30-7 / ViO35-7
Yanmar ViO30-7 / ViO35-7 True Zero Tail Swing Mini Excavator
The Yanmar ViO30-7 and ViO35-7 are True Zero Tail Swing mini excavators designed to combine compact maneuverability, powerful performance and operator-focused features for demanding construction applications. Both models are powered by the YANMAR 3TNV88-ESBV2 vertical 3-cylinder water-cooled direct-injection diesel engine, delivering 18.9 kW (25.3 HP) at 2,200 rpm.
The ViO30-7 has an operating weight of 3,115 kg with rubber tracks in the specified canopy, without quick coupler configuration, while the ViO35-7 has an operating weight of 3,435 kg in the same configuration.
With True Zero Tail Swing technology, advanced hydraulic functions, improved travel performance and a range of operator and maintenance features, the ViO30-7 and ViO35-7 are suitable for Saudi Arabian job site environments, including construction, excavation, infrastructure and utility applications.
The Yanmar ViO30-7 and ViO35-7 are available in Saudi Arabia through Abdullah Hashim Company (AHCL) – Auto & Equipment Division, the exclusive Yanmar dealer in Saudi Arabia.
Key Features & Benefits
True Zero Tail Swing
Yanmar pioneered the True Zero Tail Swing mini excavator concept. The upper frame does not extend beyond the track width, allowing the operator to work more safely in tighter spaces.
18.9 kW YANMAR Engine
Both models use the YANMAR 3TNV88-ESBV2 vertical 3-cylinder water-cooled direct-injection diesel engine, producing 18.9 kW (25.3 HP) at 2,200 rpm.
Advanced Hydraulic Performance
The machines use a hydraulic system with two variable-displacement pumps and gear pumps, with a maximum auxiliary output of 64.2 L/min.
Increased Travel Speed
The ViO30-7 and ViO35-7 offer a maximum rubber-track travel speed of 4.8 km/h, with the catalogue highlighting improved travel speed compared with the previous models.
Improved AUX Usability
Up to five hydraulic flow-rate patterns can be set for individual attachments, providing greater flexibility when using equipment such as breakers, augers and grapples.
Auto Deceleration & Eco Mode
Auto Deceleration lowers engine speed to low idle when the machine stops for more than four seconds. Eco Mode reduces engine speed to 85% of maximum speed to support lower fuel consumption.
SMARTASSIST Remote
The optional SMARTASSIST Remote telematics system enables remote monitoring of construction equipment and provides information about maintenance intervals and potential troubles through an internet-connected system.
Double Lock Quick Coupler
The optional YANMAR Original Double Lock Quick Coupler allows buckets and other attachments to be changed without tools and is ISO 13031 compliant.
ROPS & FOPS Protection
The four-pole canopy/cabin incorporates protective structures designed to meet ISO standards and help minimize damage in the event of an accident.
The Yanmar ViO30-7 and ViO35-7 are compact excavators designed for demanding professional applications where maneuverability, digging performance and operational efficiency are important.
Both models feature Yanmar's True Zero Tail Swing concept. Because the upper frame does not extend beyond the track width, operators can work more effectively in confined areas and close to surrounding obstacles.
The machines are powered by the YANMAR 3TNV88-ESBV2 vertical 3-cylinder water-cooled direct-injection diesel engine, delivering 18.9 kW (25.3 HP) at 2,200 rpm.
The ViO30-7 and ViO35-7 combine this engine performance with hydraulic systems designed for efficient attachment operation, improved travel performance and smooth machine control.
These excavators are suitable for Saudi Arabian environments, making them a practical equipment solution for construction, excavation, utility and infrastructure projects across the Kingdom.
Designed for Saudi Arabian Job Sites
The Yanmar ViO30-7 and ViO35-7 are suitable for Saudi Arabian environments and provide a compact equipment solution for demanding projects across the Kingdom.
The True Zero Tail Swing configuration makes these excavators particularly useful for work where operating space is restricted, including:
- Urban construction
- Utility trenching
- Infrastructure projects
- Excavation
- Landscaping and site preparation
- Demolition applications
- Industrial construction
- Restricted-access job sites

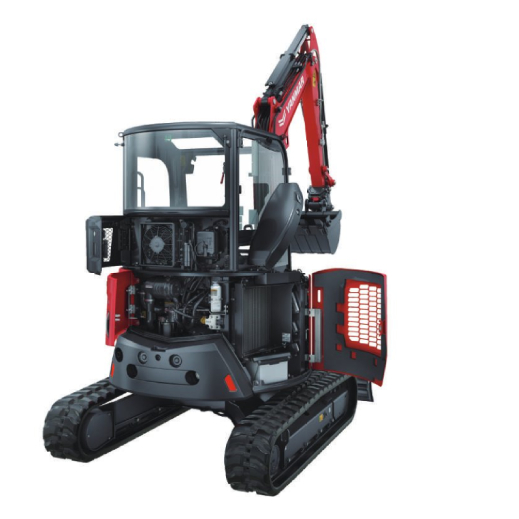

The machines incorporate an oil cooler and clog-resistant discharge radiator designed to support optimum heat balance.
This makes the ViO30-7 and ViO35-7 relevant options for contractors operating equipment across Jeddah, Riyadh, Dammam, Jubail, Al Hassa and other regions of Saudi Arabia.
YANMAR Engine – Power & Efficiency
Both models are powered by the YANMAR 3TNV88-ESBV2 engine.
Engine Specifications
- Vertical 3-cylinder
- Water-cooled
- Direct injection diesel engine
- Gross rated output: 18.9 kW / 25.3 HP
- Rated speed: 2,200 rpm
Isochronous Control
The ECU controller helps maintain constant engine speed even under high loads, supporting consistent operation during demanding work.
Auto Deceleration
When the machine stops for more than four seconds, engine speed automatically drops to low idle. When the operation lever is moved, the engine returns to its original speed.
Eco Mode
Eco Mode reduces engine speed to 85% of maximum speed, helping lower fuel consumption.
Durability & Heat Management
Optimal Heat Balance
The ViO30-7 and ViO35-7 incorporate a clog-resistant discharge radiator and oil cooler designed to maintain optimum heat balance.
This is a relevant feature for equipment operating in demanding environments and supports the positioning of these machines as suitable for Saudi Arabian job sites.
Spring Cylinder Rod Guards
The three cylinder rods are protected by a leaf-spring structure designed to help prevent damage and reduce downtime of important machine components.
Boom Built-in Light
The machine incorporates a YANMAR Original boom built-in light, providing additional illumination around the working area.
Yanmar Equipment in Saudi Arabia
Exclusive Yanmar Dealer – Abdullah Hashim Company
The Yanmar ViO30-7 and ViO35-7 are available in Saudi Arabia through Abdullah Hashim Company (AHCL) – Auto & Equipment Division, the exclusive dealer of Yanmar products in Saudi Arabia.
Abdullah Hashim Company has been a leading provider of advanced industrial equipment and solutions since 1940, representing premium international brands and serving customers across Saudi Arabia.
Through its Auto & Equipment Division, AHCL provides Yanmar equipment and related solutions to customers across the Kingdom.
Why Choose AHCL for Yanmar Equipment?
When sourcing Yanmar construction equipment in Saudi Arabia through AHCL, customers have access to:
- Exclusive Yanmar dealership in Saudi Arabia
- Yanmar construction equipment
- Genuine YANMAR recommended parts
- Equipment and attachment options
- After-sales support
- Technical and maintenance support
- Nationwide branch network
- More than eight decades of experience in the Saudi market
Frequently Asked Questions
What is the Yanmar ViO30-7?
The Yanmar ViO30-7 is a True Zero Tail Swing mini excavator powered by the 18.9 kW (25.3 HP) YANMAR 3TNV88-ESBV2 diesel engine. It is designed for construction, excavation and other applications requiring compact maneuverability and digging performance.
What is the Yanmar ViO35-7?
The Yanmar ViO35-7 is a True Zero Tail Swing mini excavator powered by the same 18.9 kW (25.3 HP) YANMAR 3TNV88-ESBV2 engine. It offers greater digging force, bucket capacity and digging range than the ViO30-7.
What is the difference between the ViO30-7 and ViO35-7?
Both machines use the same 18.9 kW / 25.3 HP engine and True Zero Tail Swing concept. The ViO35-7 has a larger standard bucket capacity of 0.11 m³ compared with 0.09 m³ for the ViO30-7, as well as greater digging force and reach.
What is the engine power of the ViO30-7 and ViO35-7?
Both models use the YANMAR 3TNV88-ESBV2 engine, producing 18.9 kW (25.3 HP) at 2,200 rpm.
What is True Zero Tail Swing?
True Zero Tail Swing means the excavator's upper frame does not extend beyond the track width. This allows the machine to operate more safely in tighter spaces.
Are the ViO30-7 and ViO35-7 suitable for Saudi Arabia?
The ViO30-7 and ViO35-7 are suitable for Saudi Arabian job site environments. Their heat-management features, compact True Zero Tail Swing design and construction-focused specifications make them suitable options for construction, excavation, utility and infrastructure projects across the Kingdom. The catalogue specifically identifies an oil cooler and clog-resistant radiator designed for optimum heat balance.
Who is the Yanmar dealer in Saudi Arabia?
Abdullah Hashim Company (AHCL) – Auto & Equipment Division is the exclusive Yanmar dealer in Saudi Arabia.
Where can I get Yanmar mini excavators in Saudi Arabia?
Yanmar mini excavators are available through AHCL Auto & Equipment Division, with branches in Jeddah, Riyadh, Dammam, Tabuk, Buraidah, Jubail, Madinah, Hail, Al Hassa, Jizan and Al Kharj.
Does the ViO30-7 / ViO35-7 support hydraulic attachments?
Yes. The machines support hydraulic attachments, with AUX flow control allowing up to five hydraulic flow-rate patterns to be set for different attachments.
Is a quick coupler available?
Yes. The YANMAR Original Double Lock Quick Coupler is available as an option and is ISO 13031 compliant. It allows buckets and other attachments to be changed without tools.
Does the Yanmar ViO30-7 / ViO35-7 have telematics?
Yes. SMARTASSIST Remote is available as a telematics system for remote monitoring, maintenance interval management and identification of machine troubles through the Internet.
