Yanmar ViO80-1 – True Zero Tail Swing Mini Excavator
ViO80-1
Yanmar ViO80-1 – True Zero Tail Swing Mini Excavator
Exclusively available through Abdullah Hashim Company (AHCL) Auto & Equipment Division | Saudi Arabia

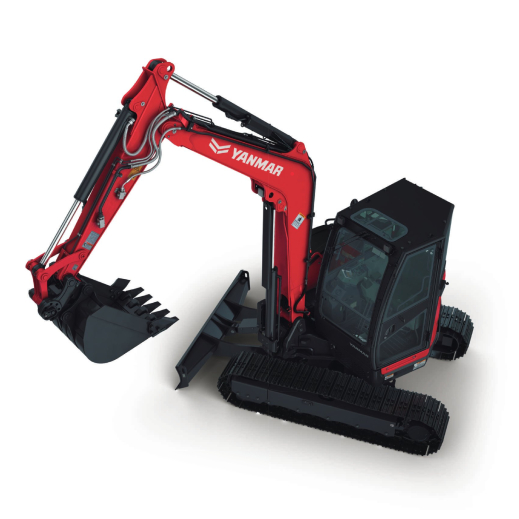

The Yanmar ViO80-1 is a powerful True Zero Tail Swing mini excavator engineered to combine the performance of a large excavator with the maneuverability and flexibility of a compact machine.
Powered by the YANMAR 4TNV98-ZWBV2 vertical 4-cylinder water-cooled direct-injection diesel engine, the ViO80-1 delivers 39.3 kW (52.7 HP) at 1,900 rpm. It provides strong digging performance, with a maximum bucket digging force of up to 63.5 kN and arm digging force of up to 40.8 kN.
With a machine width of approximately 2,270 mm, a standard 0.28 m³ bucket, strong hydraulic performance and True Zero Tail Swing architecture, the ViO80-1 is designed for demanding construction, excavation and infrastructure applications.
The ViO80-1 is suitable for demanding job-site environments in Saudi Arabia, where equipment must deliver dependable performance, maneuverability and productivity.
Large Excavator Performance in a Mini Excavator Package
The Yanmar ViO80-1 brings the performance expected from a larger excavator into a compact machine configuration. Yanmar describes the ViO80-1 as offering the performance of a large excavator while maintaining the benefits of a mini excavator. The machine combines:
- Powerful YANMAR diesel engine
- High digging forces
- Strong hydraulic performance
- Compact dimensions
- True Zero Tail Swing
- Boom swing capability
- Standard dozer blade
- Operator-focused controls
- Advanced safety features
- Attachment flexibility
This makes the ViO80-1 a versatile solution for contractors requiring substantial excavation capability without moving to a conventional large excavator.
True Zero Tail Swing
Safer Operation in Tight Job Sites
Yanmar pioneered the concept of the True Zero Tail Swing mini excavator.
The ViO80-1's upper frame does not extend beyond the track width, giving operators greater flexibility when working in confined spaces.
The design is particularly useful for applications where the excavator must operate close to:
- Buildings
- Walls
- Roads
- Utility infrastructure
- Other machinery
- Site boundaries
- Construction obstacles
The catalogue specifies a tail swing radius of 1,135 mm for the cabin and steel-track configuration.
Standard Boom Swing
Flexible Excavation Around Obstacles
The ViO80-1 features a standard boom swing that provides the flexibility required for parallel digging alongside obstacles.
The boom can swing 60° to the right and 57° to the left, helping the operator perform excavation work alongside walls and other obstacles without repositioning the entire machine.
This feature is particularly useful for:
- Roadside excavation
- Utility trenching
- Foundation work
- Urban construction
- Excavation alongside buildings
- Infrastructure projects

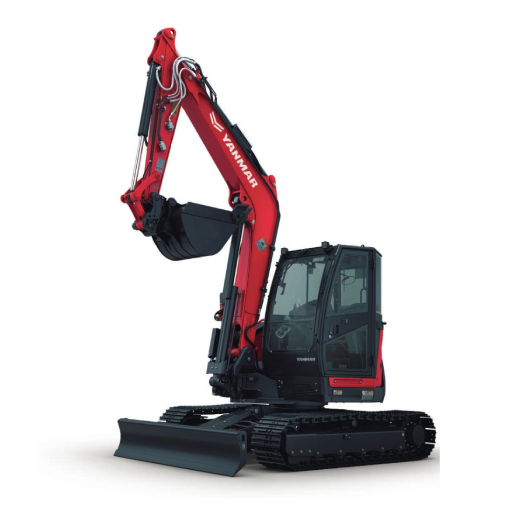

Standard Blade
Grading, Dozing and Stability
The ViO80-1 is equipped with a standard blade designed for efficient dozing and grading.
The blade also provides additional stability during digging and lifting operations.
This gives contractors additional versatility without requiring a separate machine for basic grading and site preparation tasks.
Powerful YANMAR Engine
Reliable Power and Efficiency
The ViO80-1 is powered by the YANMAR 4TNV98-ZWBV2.
Engine Specifications
Engine Type: Vertical 4-cylinder water-cooled direct-injection diesel engine
Engine Model: 4TNV98-ZWBV2
Gross Rated Output: 39.3 kW / 52.7 HP
Rated Engine Speed: 1,900 rpm
The 4TNV98-Z engine incorporates electronically controlled direct injection and Exhaust Gas Recirculation (EGR) technologies.
EGR Technology
The engine incorporates Exhaust Gas Recirculation (EGR) technology.
The system partially cools exhaust gas before mixing it with intake air and circulating it back through the cylinder. According to the catalogue, this lowers combustion temperature and helps decrease NOx emissions.
Eco Mode
Designed for Lower Fuel Consumption
The ViO80-1's Eco Mode reduces engine speed to 90% of maximum speed, helping reduce fuel consumption while maintaining efficient machine operation.
Yanmar states that Eco Mode can reduce fuel consumption by 15%.
For contractors operating equipment for extended working hours, improved fuel efficiency can contribute to more economical machine operation.
Isochronous Control
The ECU controller helps maintain constant engine speed even when the machine is operating under high loads.
This contributes to smoother machine operation and allows the operator to work with reduced stress during demanding excavation tasks.
Auto Deceleration
The Auto Deceleration system automatically lowers engine speed to idle when the machine remains stopped for more than 4 seconds.
When the operator moves the operating lever, the engine returns to its original speed.
This helps reduce unnecessary engine operation during temporary periods of inactivity.
Strong Digging Performance
The ViO80-1 provides high digging forces for demanding excavation applications.
Maximum Bucket Digging Force
Up to 63.5 kN / 14,275 lbs
Maximum Arm Digging Force
Up to 40.8 kN / 9,172 lbs
The catalogue provides different figures according to configuration and operating conditions.
Excavation Performance
The ViO80-1 provides:
- Maximum digging depth: up to 4,680 mm
- Maximum vertical wall digging depth: up to 3,940 mm
- Maximum cutting height: up to 7,230 mm
- Maximum dumping height: up to 4,680 mm
- Maximum ground digging radius: up to 7,140 mm
These figures vary depending on configuration and whether the machine is equipped with a quick coupler.

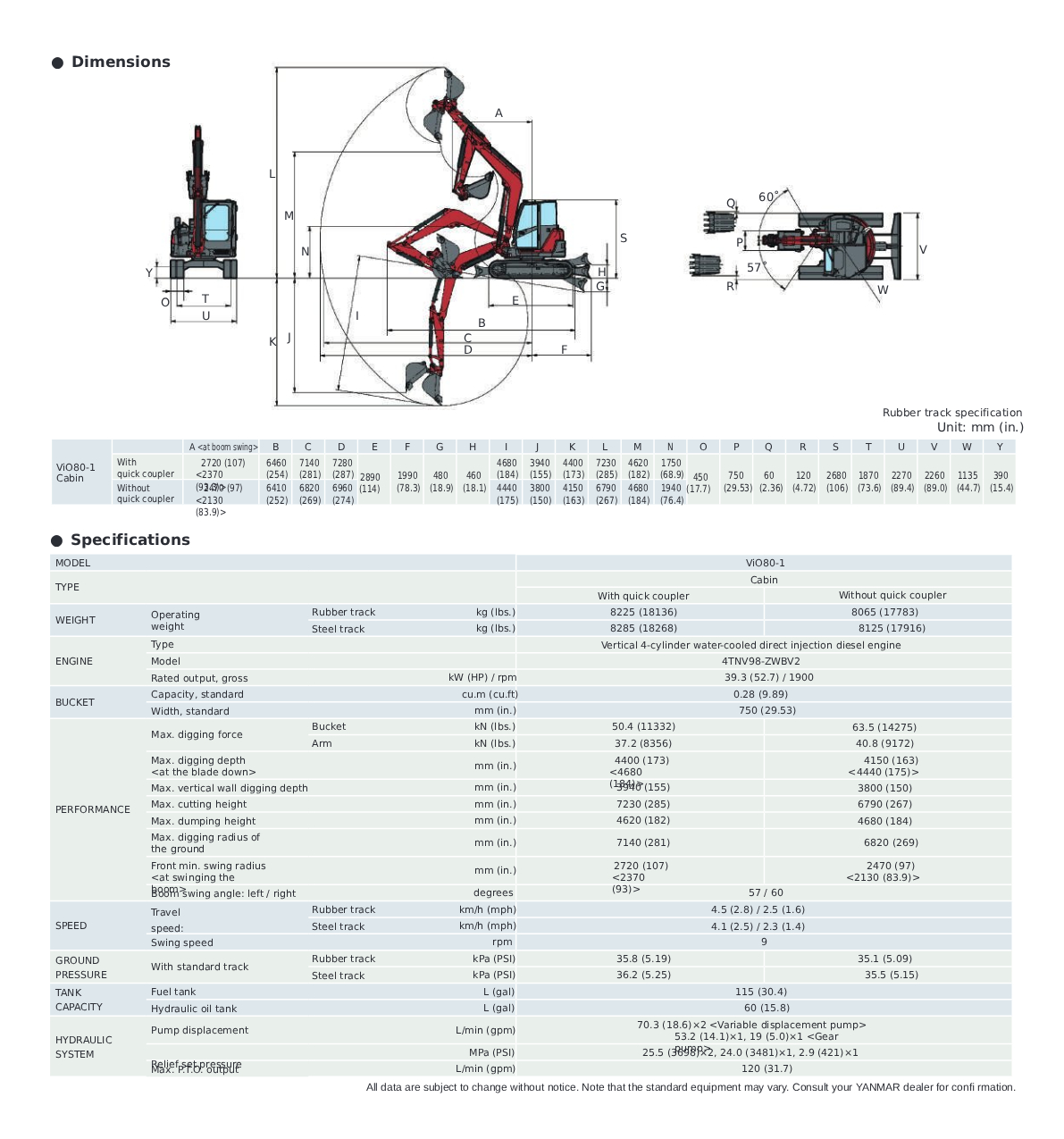

Compact Dimensions
Despite its strong excavation performance, the ViO80-1 maintains a compact footprint.
For the cabin configuration shown in the catalogue, the machine width is 2,270 mm. The tail swing radius is 1,135 mm, while the minimum swing radius is 2,720 mm and minimum boom swing radius is 2,370 mm with the applicable configuration.
This combination helps the ViO80-1 operate efficiently in sites where space and maneuverability are important.
Operating Weight
For the cabin configuration:
Rubber Track
- With quick coupler: 8,225 kg
- Without quick coupler: 8,065 kg
Steel Track
- With quick coupler: 8,285 kg
- Without quick coupler: 8,125 kg
The operating weights shown in the catalogue are configuration-specific.
Bucket
The standard bucket specification is:
Capacity: 0.28 m³ / 9.89 cu.ft
Standard Width: 750 mm / 29.53 in.
The machine is designed to support a range of attachment configurations depending on application requirements.
Travel & Swing Performance
Rubber Track
High Speed: 4.5 km/h
Low Speed: 2.5 km/h
Steel Track
High Speed: 4.1 km/h
Low Speed: 2.3 km/h
Swing Speed
9 rpm
Hydraulic System
The ViO80-1 hydraulic system features:
- 70.3 L/min × 2 variable displacement pumps
- 53.2 L/min × 1 gear pump
- 19 L/min × 1 gear pump
- Maximum P.T.O. output of 120 L/min
The catalogue specifies relief pressures of 25.5 MPa × 2, 24.0 MPa × 1, and 2.9 MPa × 1.
Fuel & Hydraulic Oil Capacity
Fuel Tank Capacity: 115 L
Hydraulic Oil Tank Capacity: 60 L
The capacities provide the machine with the operating resources required for demanding construction and excavation work.
Operator Comfort
Ergonomically Designed Controls
The operating controls and switches are ergonomically arranged within easy reach of one hand, helping operators control the machine efficiently throughout long working periods.
Suspension & Reclining Seat
The suspension and adjustable reclining seat allows the operator to find a comfortable working position while reducing shocks and vibrations.
Large LCD Monitor
A large LCD monitor with LED backlight provides clear information about machine operating status and maintenance information.
Dial Accelerator
The fingertip-controlled dial accelerator makes it easy for the operator to adjust engine speed.
12V External Power Outlet
A 12V external power socket is provided for charging mobile phones and other compatible devices.
P.T.O. Switch & Flow Adjustment
Hydraulic P.T.O. lines can be controlled using fingertip controls, allowing precise operation of compatible attachments.
Safety Features
ROPS & OPG Top Guard Cabin
The cabin features a protective structure meeting applicable ISO standards.
The ROPS protects the operator in the event of a rollover when the operator is wearing the seat belt, while the OPG provides protection against falling objects. The catalogue specifies an OPG Top Guard Level I configuration.
Emergency Engine Stop Switch
An easily accessible emergency engine stop switch allows the operator to shut down the engine in an emergency.
Back Mirror
The standard back mirror provides additional rear visibility to support safer operation on job sites.
LED Working Lights
Protected LED working lights provide brighter illumination for safer and more accurate operation in dark or low-light working areas.
Boom Cylinder Guard
A boom cylinder guard helps protect the cylinder rod from damage during operation.

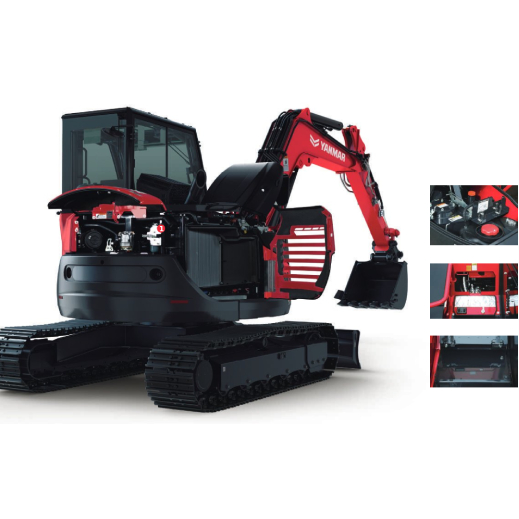

Easy Maintenance
The ViO80-1 is designed to make routine inspection and maintenance more convenient.
Engine & Air Cleaner
The wide-opening engine bonnet provides easier access for inspection and maintenance of the engine and air cleaner.
Radiator & Battery
The right-hand-side bonnet can be opened without tools, making battery inspection and radiator cleaning easier.
Hydraulic & Fuel Systems
A lockable right upper-side bonnet provides convenient access to the hydraulic oil tank and fuel tank while providing added security.
Tool Box
A dedicated toolbox provides a secure location for storing tools.
SMARTASSIST Remote
Advanced Fleet Management
The optional SMARTASSIST Remote system provides advanced management of construction equipment equipped with a GPS transmission terminal.
The system enables remote monitoring of equipment and can provide information about maintenance intervals and machine troubles through an internet-connected platform.
For contractors and fleet operators managing machinery across multiple project locations in Saudi Arabia, this technology can support equipment monitoring and maintenance planning.
Hydraulic Quick Coupler
Faster Attachment Changes
The optional YANMAR Hydraulic Quick Coupler makes changing buckets and compatible attachments faster and easier.
The system is designed to save time during attachment changes so operators can focus on the work at hand.
Some buckets and attachments may not be applicable. Confirm compatibility with AHCL/YANMAR before purchase.
P.T.O. Hydraulic Lines
Optional P.T.O. Hydraulic Lines 1 and 2 are available with adjustable proportional control.
These hydraulic lines are designed to provide easy, fast and intuitive control of various compatible attachments.
YANMAR Hydraulic Breakers
A range of YANMAR Hydraulic Breakers is available for demolition applications.
The ViO80-1 attachment lineup includes:
- Side Mounted Hydraulic Breaker
- Pin Mounted Hydraulic Breaker
- Cap Mounted Hydraulic Breaker
- Box Housing Hydraulic Breaker – Silenced
YANMAR states that its hydraulic breakers are designed to provide reliability, productivity and durability.
YANMAR Recommended Parts
YANMAR recommended parts are available for supporting equipment maintenance and undercarriage requirements, including:
- Sprocket
- Bucket Tooth-Adapter
- Idler
- Rubber Track
- Rubber Pad
- Track Roller
- Carrier Roller
YANMAR describes these recommended parts as providing guaranteed quality and durability.
Suitable for Saudi Arabian Construction Environments

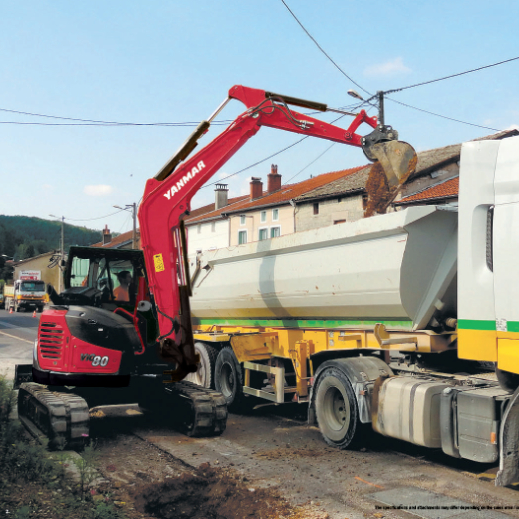

The Yanmar ViO80-1 is suited to demanding professional construction and excavation applications where power, maneuverability and equipment reliability are important.
The machine's combination of a powerful diesel engine, True Zero Tail Swing architecture, robust hydraulic system, efficient engine controls, protective features and operator-focused design makes it suitable for a wide range of applications across Saudi Arabia.
The machine's compact configuration and True Zero Tail Swing design can be particularly valuable for projects where available working space is restricted.
For Saudi contractors operating in Jeddah, Riyadh, Dammam, Jubail, Al Hassa, Tabuk, Buraidah, Madinah, Hail, Jizan and Al Kharj, the ViO80-1 offers a versatile solution for professional excavation and construction requirements.
Applications
The Yanmar ViO80-1 can be used for a wide range of construction and infrastructure applications, including:
Construction & Excavation
Excavation, earthmoving and general construction site preparation.
Infrastructure Projects
Road, infrastructure and civil construction applications requiring strong digging performance and maneuverability.
Utility & Trenching
Excavation around utility infrastructure and confined working areas.
Urban Construction
True Zero Tail Swing capability makes the ViO80-1 suitable for working around buildings, roads and other obstacles.
Road & Civil Works
Suitable for excavation, grading and supporting activities on road and civil engineering projects.
Landscaping & Site Preparation
The standard blade provides additional capability for grading, dozing and site preparation.
Demolition
Compatible YANMAR hydraulic breakers can support demolition applications.
Industrial Projects
Suitable for excavation and related construction activities at industrial and commercial project sites.
Why Buy Yanmar ViO80-1 from AHCL?
Abdullah Hashim Company (AHCL) Auto & Equipment Division is the exclusive dealer of Yanmar products in Saudi Arabia.
Since 1940, Abdullah Hashim Company has been providing advanced industrial equipment and solutions in Saudi Arabia and representing premium international brands across the Kingdom.
AHCL's Auto & Equipment Division provides Yanmar construction equipment together with product support, parts and after-sales services.
When you choose Yanmar through AHCL, you benefit from:
- Genuine YANMAR construction equipment
- Exclusive authorized Yanmar dealer support in Saudi Arabia
- Professional product assistance
- After-sales service and technical support
- Genuine YANMAR recommended parts
- Access to YANMAR attachments
- Hydraulic breaker solutions
- Fleet-management solutions
- Nationwide branch support
- More than 85 years of experience in Saudi Arabia
AHCL Branch Network Across Saudi Arabia
Abdullah Hashim Company Auto & Equipment Division serves customers across key Saudi cities and industrial regions. Whether your project is located in Jeddah, Riyadh, Dammam, Jubail, Al Hassa, Tabuk, Buraidah, Madinah, Hail, Jizan or Al Kharj, AHCL provides access to Yanmar construction equipment and related support.
Frequently Asked Questions
What is the Yanmar ViO80-1?
The Yanmar ViO80-1 is a True Zero Tail Swing mini excavator designed to provide the performance of a larger excavator while retaining the maneuverability benefits of a mini excavator.
What engine does the ViO80-1 use?
The ViO80-1 is powered by the YANMAR 4TNV98-ZWBV2, a vertical 4-cylinder water-cooled direct-injection diesel engine producing 39.3 kW / 52.7 HP at 1,900 rpm.
What is True Zero Tail Swing?
True Zero Tail Swing means that the upper frame does not extend beyond the track width, allowing the excavator to operate more effectively in tight and confined job sites.
What is the operating weight of the ViO80-1?
For the cabin configuration, operating weight ranges from 8,065 kg to 8,225 kg with rubber tracks, depending on whether a quick coupler is fitted. Steel-track configurations range from 8,125 kg to 8,285 kg.
What is the maximum digging depth?
Depending on configuration, the maximum digging depth is up to 4,680 mm.
What is the maximum digging force?
The maximum bucket digging force is up to 63.5 kN, while the maximum arm digging force is up to 40.8 kN, depending on the applicable configuration.
What is the bucket capacity?
The standard bucket has a capacity of 0.28 m³, with a standard width of 750 mm.
What is the travel speed of the ViO80-1?
With rubber tracks, the travel speed is 4.5 km/h high and 2.5 km/h low. With steel tracks, it is 4.1 km/h high and 2.3 km/h low.
Does the ViO80-1 have Eco Mode?
Yes. Eco Mode reduces engine speed to 90% of maximum speed and Yanmar states that it can reduce fuel consumption by 15%.
Does the ViO80-1 have Auto Deceleration?
Yes. Auto Deceleration lowers engine speed to idle when the machine stops for more than four seconds and restores engine speed when the operating lever is moved.
Is a hydraulic quick coupler available?
Yes. A YANMAR Hydraulic Quick Coupler is available as an option for faster bucket and attachment changes.
Are hydraulic breakers available for the ViO80-1?
Yes. YANMAR offers hydraulic breakers in Side Mounted, Pin Mounted, Cap Mounted and Box Housing Silenced configurations.
Does the ViO80-1 support fleet management?
Yes. The optional SMARTASSIST Remote system provides GPS-based remote monitoring and can provide information about maintenance intervals and machine troubles through an internet-connected platform.
Is the Yanmar ViO80-1 suitable for Saudi Arabia?
The ViO80-1 is designed for demanding construction applications and its combination of power, compact dimensions, True Zero Tail Swing design and equipment features makes it suitable for professional construction and infrastructure applications in Saudi Arabia.
Who is the Yanmar dealer in Saudi Arabia?
Abdullah Hashim Company (AHCL) Auto & Equipment Division is the exclusive dealer of Yanmar products in Saudi Arabia.
Where can I enquire about the Yanmar ViO80-1 in Saudi Arabia?
You can contact AHCL Auto & Equipment Division through its branch network covering Jeddah, Riyadh, Dammam, Tabuk, Buraidah, Jubail, Madinah, Hail, Al Hassa, Jizan and Al Kharj.
